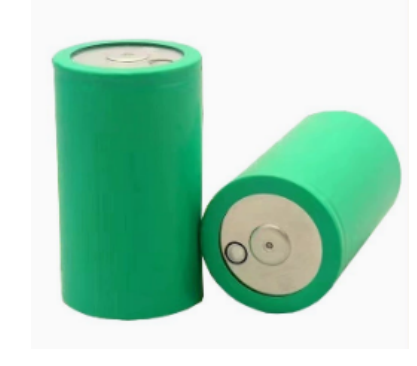

4680 15000mAh,23000 mAh lithium iron phosphate battery
4680 15000mAh,23000 mAh lithium iron phosphate battery
- DESCRIPTION
4680 15000mAh ,23000mAh,lithium iron phosphate battery
Configuration category: Lithium ion battery cell
Storage temperature -20 ℃~60 ℃
Protection function
Overcharge protection, temperature control protection, equipped with explosion-proof valve, short circuit protection, overcurrent protection, and over discharge protection
Charging working temperature: 0 ° C to 45 ° C
Discharge working temperature -20 ℃~60 ℃
The number of cycles is greater than 2000 times
Model: BYD 4680-3.2V 15A
Nominal voltage: 3.2V
Standard capacity: 15Ah

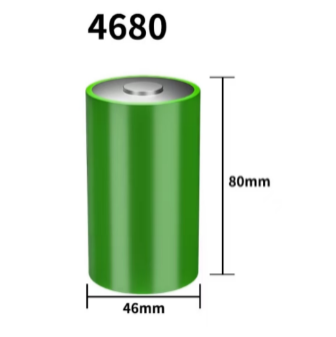

Size: 46.3*80.2mm
Weight: 335g
Charge voltage: 3.65 ±0.05V
Cut-off voltage: 2.0±0.05V
Internal resistance: ≤ 8mΩ
Standard charging current: 0.5C
Standard discharge current: 0.5C
Max. Continuous Discharge Current:1C
Packing quantity: 100PCS
Packaging box size: 22 * 42 * 16CMCM
Full box weight 35KG
Product certification: CB, UL1642, UN38.3, DGM, MSDS, IEC, CE,
Suitable for energy storage, electric vehicles
